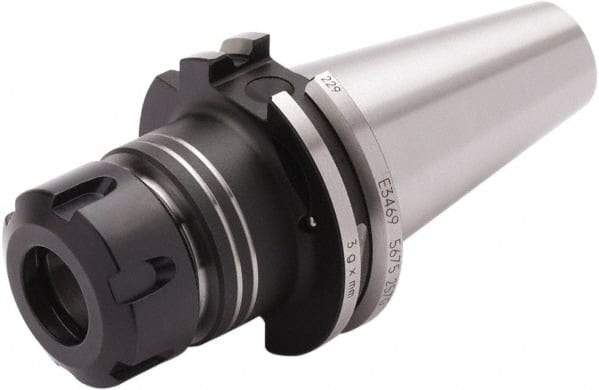

Seco - 0.019" to 0.393" Capacity, 2.755" Projection, DIN69871-40 Taper Shank, ER16 Collet Chuck - 5.448" OAL
Item #: 60132172
Brand: Seco
Model #: 66042
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER16 |
| Shank Type | Taper Shank |
| Taper Size | DIN69871-40 |
| Projection (Decimal Inch) | 2.7550 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0190 |
| Maximum Collet Capacity (Decimal Inch) | 0.3930 |
| Overall Length (Decimal Inch) | 5.4480 |
| Nose Diameter (Decimal Inch) | 1.2590 |
| PSC Code | 5136 |
| TIR (Decimal Inch) | 0.0002 |
| Coolant Type | Through-Spindle & DIN Flange |
| Collet Nut Diameter (Decimal Inch) | 1.2590 |
