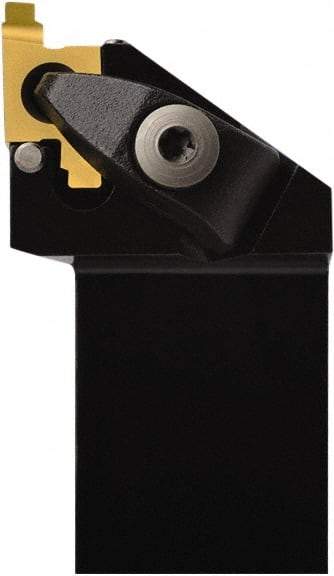

Seco - External Thread, Left Hand Cut, 1" Shank Width x 10mm Shank Height Indexable Threading Toolholder - 6" OAL, 26EL Insert Compatibility, CE Toolholder
Item #: 60131687
Brand: Seco
Model #: 13477
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | External |
| Hand of Holder | Left Hand |
| Shank Width/Diameter (mm) | 25.40 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Inch) | 1 |
| Shank Height (mm) | 10.00 |
| Shank Height (Decimal Inch) | 0.3937 |
| Overall Length (Decimal Inch) | 6.0000 |
| Overall Length (Inch) | 6 |
| Insert Compatibility | 26EL |
| Toolholder Style | CE |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.6000 |
| Head Length (Decimal Inch) | 2.1930 |
| Insert Inscribed Circle (mm) | 15.88 |
| Insert Inscribed Circle (Decimal Inch) | 0.6252 |
