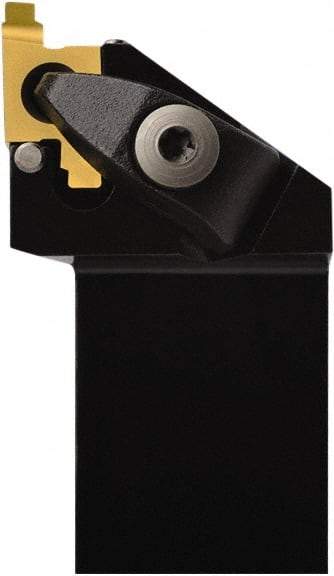

Seco - External Thread, Left Hand Cut, 24.99mm Shank Width x 24.99mm Shank Height Indexable Threading Toolholder - 150.01mm OAL, 20EL Insert Compatibility, CE Toolholder, Series Snap Tap
Item #: 60131489
Brand: Seco
Model #: 00738
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | External |
| Hand of Holder | Left Hand |
| Shank Width/Diameter (mm) | 24.99 |
| Shank Width/Diameter (Decimal Inch) | 0.9840 |
| Shank Height (mm) | 24.99 |
| Shank Height (Decimal Inch) | 0.9840 |
| Overall Length (Decimal Inch) | 5.9060 |
| Overall Length (mm) | 150.01 |
| Insert Compatibility | 20EL |
| Series | Snap Tap |
| Toolholder Style | CE |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 32.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2600 |
| Head Length (mm) | 34.01 |
| Head Length (Decimal Inch) | 1.3390 |
| Insert Inscribed Circle (mm) | 12.70 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
