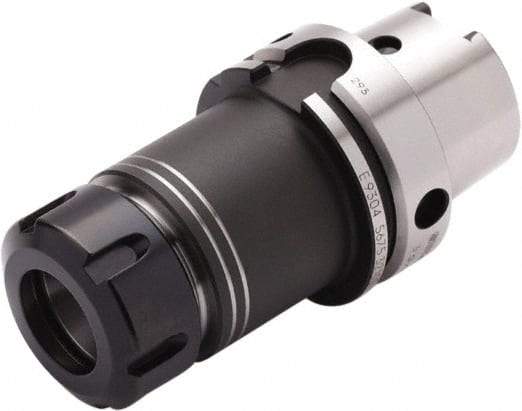

Seco - 0.079" to 0.787" Capacity, 3.937" Projection, HSK63A Hollow Taper, ER32 Collet Chuck - 5.197" OAL
Item #: 60115789
Brand: Seco
Model #: 66060
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER32 |
| Shank Type | Hollow Taper |
| Taper Size | HSK63A |
| Projection (Decimal Inch) | 3.9370 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0790 |
| Maximum Collet Capacity (Decimal Inch) | 0.7870 |
| Overall Length (Decimal Inch) | 5.1970 |
| Nose Diameter (Decimal Inch) | 1.9690 |
| PSC Code | 5136 |
| TIR (Decimal Inch) | 0.0002 |
| Coolant Type | Through-Spindle |
| Collet Nut Diameter (Decimal Inch) | 1.9690 |
