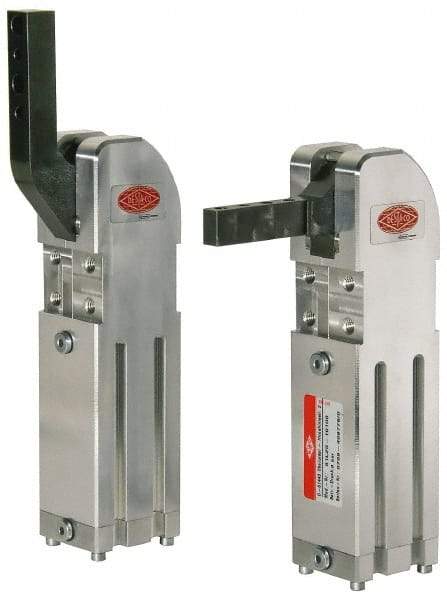

De-Sta-Co - 354 Lb Inner Hold Capacity, Vert Mount, Air Power Hold-Down Toggle Clamp - M5 Port, 90° Bar Opening, 119mm Height Under Bar
Item #: 60095841
Brand: De-Sta-Co
Model #: 81L16-14100
Exact Tooling IR#: 04
Features and Benefits
Vertical mounts are designed with the toggle at 90 degrees. The cylinder is mounted in either a vertical position or a position that is perpendicular to the clamping bar.
| Product Specifications | |
|---|---|
| Power Type | Pneumatic |
| Mounting Orientation | Vertical |
| Holding Capacity - Inner (Lb.) | 354 |
| Height Under Bar (mm) | 119.00 |
| Height Under Bar (Decimal Inch) | 4.69 |
| Port Size | M5 |
| Bar Opening (Degrees) | 90 |
| Length Distance Between Mount Holes (mm) | 20.00 |
| Length Distance Between Mount Holes (Decimal Inch) | 0.7900 |
| Width Distance Between Mount Holes (mm) | 12.00 |
| Width Distance Between Mount Holes (Decimal Inch) | 0.4700 |
| Clamping Force - Inner (Ft/Lb) | 4.80 |
| Clamping Force - Inner (N/m) | 6.50 |
| Overall Open Height (Decimal Inch) | 5.83 |
| Overall Open Height (mm) | 154.80 |
| Overall Closed Height (mm) | 30.00 |
| Overall Closed Height (Decimal Inch) | 1.12 |
| Air Requirement (psi) | 20 to 130 |
| Mounting Hole Size (mm) | M5x5 |
| Bar Style | Solid |
| Bar End Type | Closed |
| Sensor Compatibility | Round; T-Slot |
| Cylinder Bore Size (mm) | 29.97 |
| Cylinder Bore Size (Decimal Inch) | 1.1800 |
