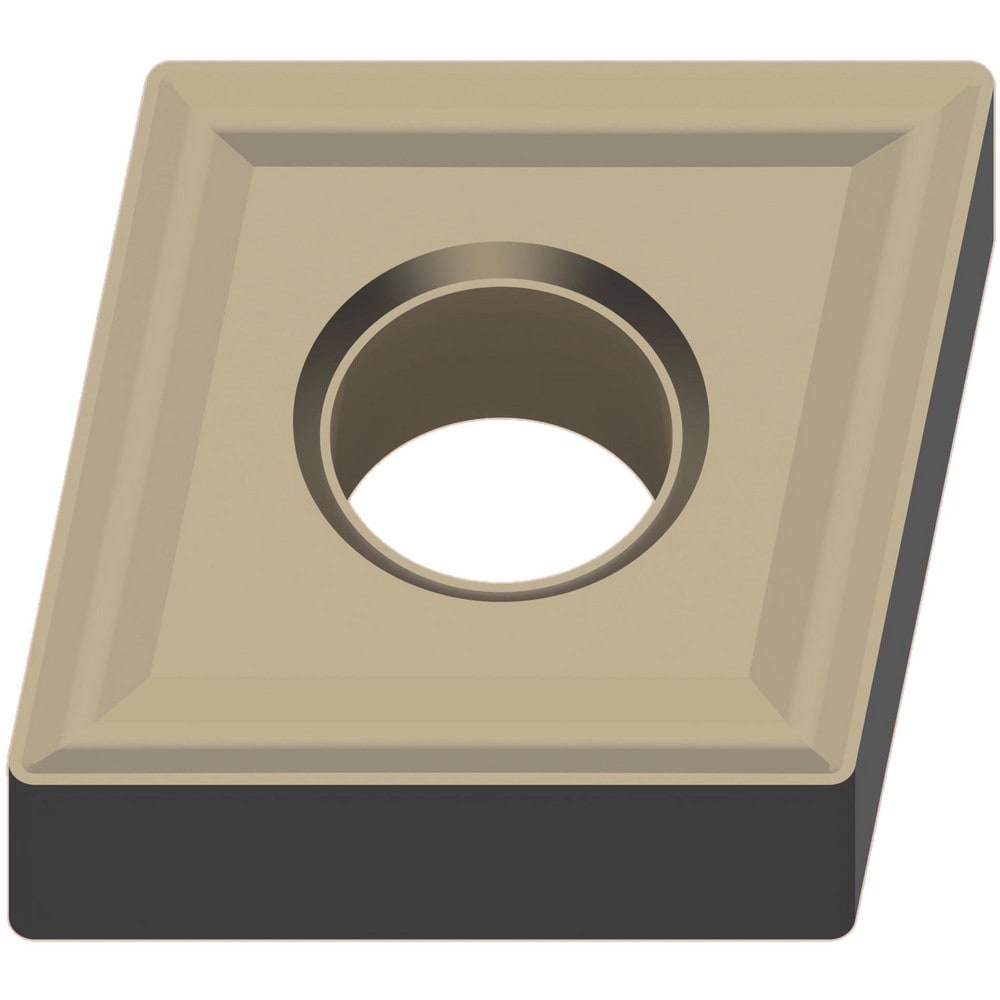

Turning Insert: CNMG544 UE6105, Carbide
Item #: 01191899
Brand: Mitsubishi
Model #: 482880
Product Specifications
| ANSI Insert Code | CNMG544 |
| ISO Insert Code | CNMG160616 |
| Relief Angle | 0 |
| Insert Style | CNMG |
| Corner Radius (mm) | 1.60 |
| Corner Radius (Inch) | 1/16 |
| Corner Radius (Decimal Inch) | 0.0625 |
| Included Angle | 80 |
| Manufacturer Grade | UE6105 |
| Coating/Finish | CVD |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/4 |
| Insert Thickness | 6.35 |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Inscribed Circle (Inch) | 5/8 |
| Inscribed Circle (mm) | 15.88 |
| Insert Material | Carbide |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Grade Characteristics | Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Negative |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | C |
| Clearance Code | N |
| Tolerance Code | M |
| Primary Workpiece Material Code | P |
| Chip Breaker | Pressed |
| ANSI Size Code | 544 |
| ISO Size Code | 160616 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 5 |
