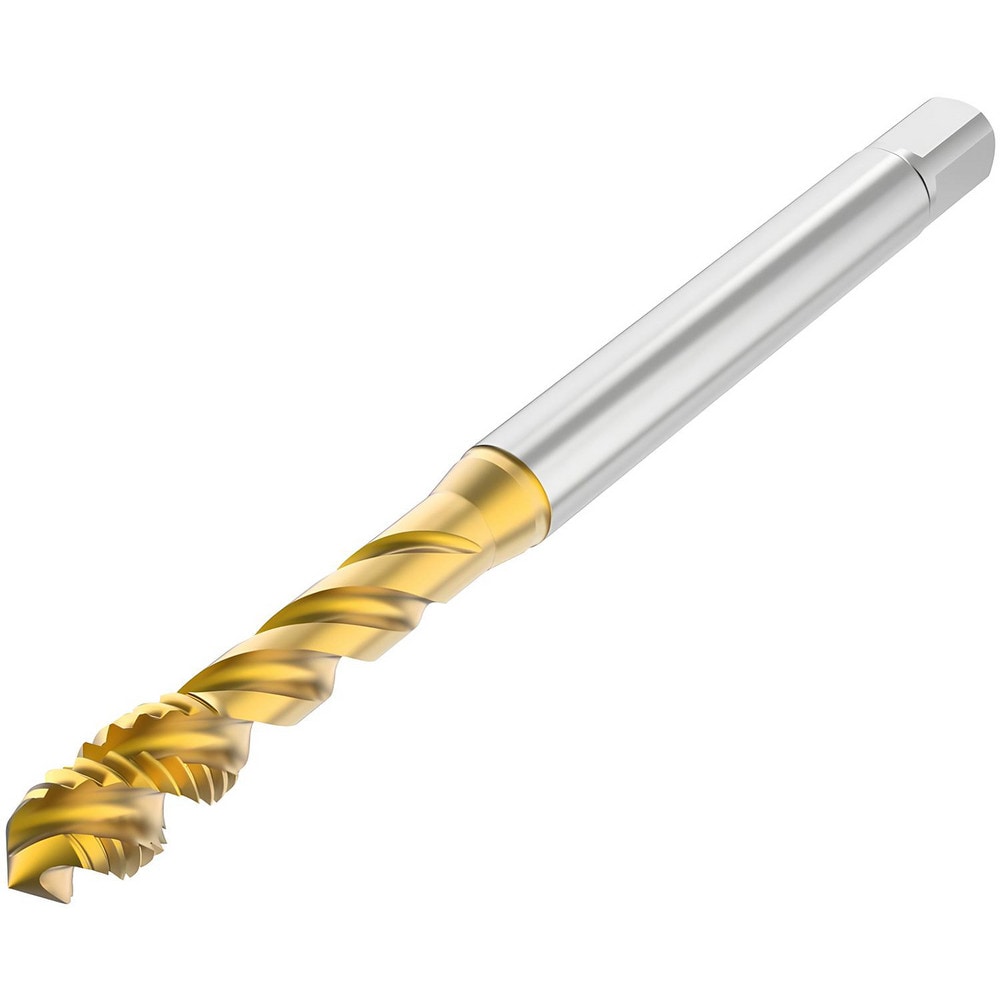

Brand: Seco / Part #: 10139153
Item #: 98690654
Brand: Seco
Model #: 10139153
Product Specifications
| Thread Size (Inch) | #4-40 |
| Chamfer | Modified Bottoming |
| Class Of Fit | 2B |
| Number Of Flutes | 3 |
| Material | HSS-E-PM |
| Threads per Inch | 40 |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Coating/Finish | TN |
| Thread Depth (mm) | 5.00 |
| Coolant Through | No |
| Thread Length (mm) | 5.00 |
| Overall Length (mm) | 56.0000 |
| Thread Pitch (Decimal Inch) | 0.0250 |
| Thread Pitch (mm) | 0.64 |
| Thread Standard | UNC |
| Helix Angle | 40.00 |
| Oversize | No |
| Application | Blind Hole Threading |
| Shank Diameter (mm) | 3.5000 |
| Neck Length (mm) | 13.00 |
| Tapping Depth (mm) | 18.00 |
| Flute Style | Spiral |
| Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Series | T32 |
| Shank Length (mm) | 38.000 |
