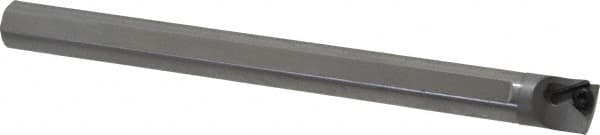

Kennametal - 0.563" Min Bore Diam, 6" OAL, 1/2" Shank Diam, QSBI Indexable Boring Bar - 2" Max Bore Depth, TP.. Insert, Screw Holding Method
Item #: 59869909
Brand: Kennametal
Model #: 1950401
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | QSBI |
| Series | Q |
| Minimum Bore Diameter (Decimal Inch) | 0.5630 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (Inch) | 2 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Insert Compatibility | TP.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Positive |
| Lead Angle | 5 |
| Center to Cutting Edge (Decimal Inch) | 0.2960 |
| Insert Thickness (Decimal Inch) | 0.0960 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Rake Angle | 5 |
| Coolant Hole Diameter (Decimal Inch) | 0.0800 |
| Complete Insert Compatibility | TPCB 220.5; TPCB 220.5 2; TPCB 2200; TPCB 2200-2; TPCB 221; TPCB 221-2; TPCB 222; TPCB 222-2; TPCG 220.5; TPCG 221; TPCG 222; TPCH 220.5; TPCH 221; TPGT 220.5; TPGT 221; TPMT 220.5; TPMT 221 |
| Toolholder Material | Steel |
