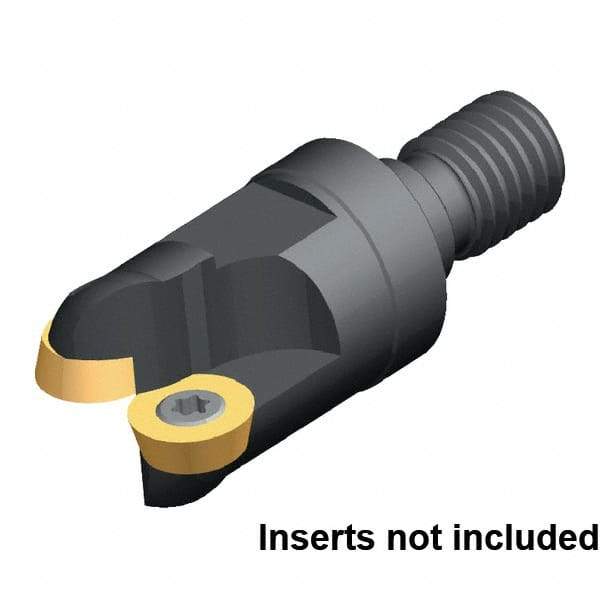

Kennametal - 25.4mm Cutting Diam, 1" Max Depth of Cut, Modular Connection Indexable Copy End Mill - 3 Inserts, RDHX 1003M0S Insert, KDM Toolholder
Item #: 59857581
Brand: Kennametal
Model #: 2511352
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.40 |
| Cutting Diameter (Inch) | 1 |
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Shank Type | Modular Connection |
| Modular Connection Thread Size | M12 |
| Number of Cutter Inserts | 3 |
| Insert Style | RDHX 1003M0S |
| Toolholder Style | KDM |
| Series | KDM |
| Overall Length (mm) | 34.93 |
| Overall Length (Inch) | 1 |
| Overall Length (Decimal Inch) | 1.3750 |
| Insert Diameter (mm) | 10.00 |
| Insert Diameter (Decimal Inch) | 0.3937 |
| Insert Holding Method | Screw |
| Number of Flutes | 3 |
| Minimum Cutting Diameter (mm) | 15.39 |
| Head Length (mm) | 34.93 |
| Head Length (Inch) | 1-3/8 |
| Head Length (Decimal Inch) | 1.3750 |
| Maximum Cutting Diameter (Decimal Inch) | 1.0000 |
| Modular Connection Size | M12 |
