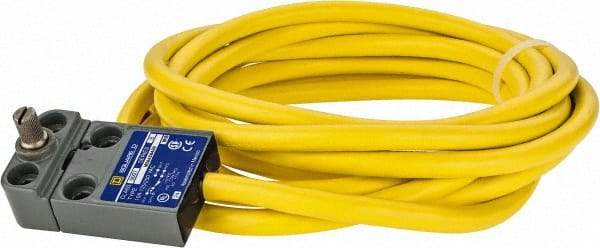

Square D - SPDT, NC/NO, Multiple VAC Levels, Prewired Terminal, Rotary Spring Return Actuator, General Purpose Limit Switch - 1, 2, 4, 6, 6P NEMA Rating, IP67 IPR Rating
Item #: 59760744
Brand: Square D
Model #: 9007MS04S0400
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Actuator Type | Rotary Spring Return |
| Voltage | 120 VAC @ 6 A; 240 VAC @ 3 A; 28 VDC @ 5 A |
| Contact Form | SPDT |
| Contact Configuration | NC/NO |
| Terminal Type | Prewired |
| Actuator Location | Side |
| Material | Metal |
| Amperage | 3 @ 240 VAC; 5 @ 28 VDC; 6 @ 120 VAC |
| NEMA Rating | 1; 2; 4; 6; 6P |
| Ingress Protection Rating | IP67 |
| Maximum Operating Force (oz-in) | 48 |
| Maximum Operating Temperature (F) | 220 |
| Minimum Operating Temperature (F) | -40 |
| Overall Width (Decimal Inch) | 1.5600 |
| Overall Depth (Decimal Inch) | 0.6200 |
| Standards Met | CE; CSA; CSA C22.2 No. 14; E78403; IEC 60068-2-27; IEC 60068-2-6; IEC 60529; LR 25490 Class 32 11 03; RoHS Compliant; UL; UL 508 |
