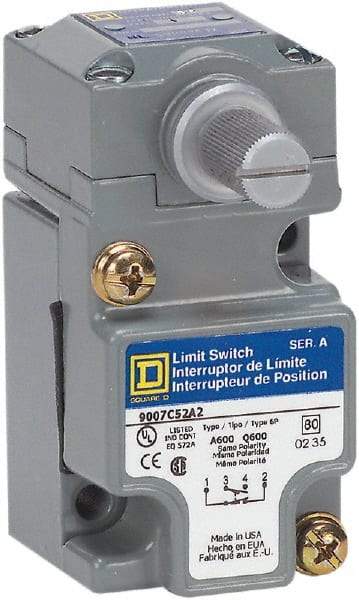

Square D - SPDT, NC/NO, Multiple VAC Levels, Screw Terminal, Rotary Head Actuator, General Purpose Limit Switch - 1, 2, 4, 6, 12, 13, 6P NEMA Rating, IP66 IPR Rating
Item #: 59760314
Brand: Square D
Model #: 9007C52A2
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Actuator Type | Rotary Head |
| Voltage | 120 VAC @ 6 A; 120 VDC @ 3 A; 240 VAC @ 3 A; 28 VDC @ 5 A; 480 VAC @ 1.50 A; 600 VAC @ 1.20 A |
| Contact Form | SPDT |
| Contact Configuration | NC/NO |
| Terminal Type | Screw Terminal |
| Connection Type | 1/2-14 NPT |
| Actuator Location | Side |
| Material | Metal |
| Amperage | 0.11 @ 250 VDC; 0.55 @ 125 VDC; 1.20 @ 600 VAC; 1.50 @ 480 VAC; 3 @ 240 VAC; 6 @ 120 VAC |
| NEMA Rating | 1; 2; 4; 6; 12; 13; 6P |
| Ingress Protection Rating | IP66 |
| Maximum Operating Temperature (F) | 185 |
| Minimum Operating Temperature (F) | -20 |
| Overall Width (Decimal Inch) | 1.5500 |
| Overall Depth (Decimal Inch) | 2-1/2 |
| Standards Met | ANSI B1.20.1; CE; CSA; CSA C22.2 No. 14; IEC 60068-2-27; IEC 60068-2-6; IEC 60529; IEC 61140; RoHS Compliant; UL; UL 508 |
