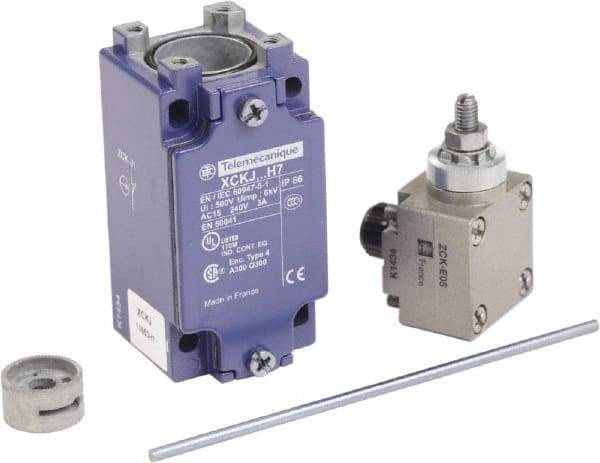

Telemecanique Sensors - SPDT, NC/NO, 240 VAC, 600 VDC at 0.10 Amp, Screw Terminal, Rod Lever Actuator, General Purpose Limit Switch - 1, 2, 3, 4, 12 NEMA Rating, IP66 IPR Rating
Item #: 59760165
Brand: Telemecanique Sensors
Model #: XCKJ10553H7
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Actuator Type | Rod Lever |
| Voltage | 240 VAC; 600 VDC @ 0.10 A |
| Contact Form | SPDT |
| Contact Configuration | NC/NO |
| Terminal Type | Screw Terminal |
| Connection Type | 1/2 NPT |
| Actuator Location | Side |
| Material | Metal |
| Amperage | 10 |
| NEMA Rating | 1; 2; 3; 4; 12 |
| Ingress Protection Rating | IP66 |
| Maximum Operating Temperature (F) | 158 |
| Minimum Operating Temperature (F) | -13 |
| Overall Width (mm) | 40 |
| Overall Depth (mm) | 44 |
| Standards Met | CCC; CENELEC EN 50041; CSA; CSA C22.2 No. 14; EN/IEC 60204-1; EN/IEC 60947-5-1; RoHS Compliant; UL; UL 508 |
