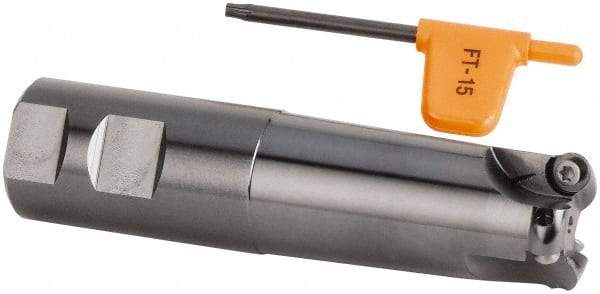

Kennametal - 1-1/4" Cutting Diam, 1-1/4" Shank Diam, 1-1/4" Max Depth of Cut, Straight Shank Indexable Copy End Mill - 3 Inserts, RD.X 10.. Insert, KDM Toolholder, Through Coolant
Item #: 59678748
Brand: Kennametal
Model #: 2251755
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 31.75 |
| Cutting Diameter (Inch) | 1-1/4 |
| Cutting Diameter (Decimal Inch) | 1.2500 |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1968 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 31.75 |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Number of Cutter Inserts | 3 |
| Insert Style | RD.X 10.. |
| Toolholder Style | KDM |
| Series | KDM |
| Overall Length (mm) | 127.76 |
| Overall Length (Decimal Inch) | 5.0300 |
| Insert Diameter (mm) | 10.00 |
| Insert Diameter (Decimal Inch) | 0.3937 |
| Insert Holding Method | Screw |
| Through Coolant | Through Coolant |
| Weldon Flat | Yes |
| Number of Flutes | 3 |
| Minimum Cutting Diameter (mm) | 21.74 |
| Head Length (mm) | 69.85 |
| Head Length (Inch) | 2-3/4 |
| Head Length (Decimal Inch) | 2.7500 |
| Shank Length (mm) | 57.91 |
| Shank Length (Decimal Inch) | 2.2800 |
| Maximum Cutting Diameter (Decimal Inch) | 1.2500 |
