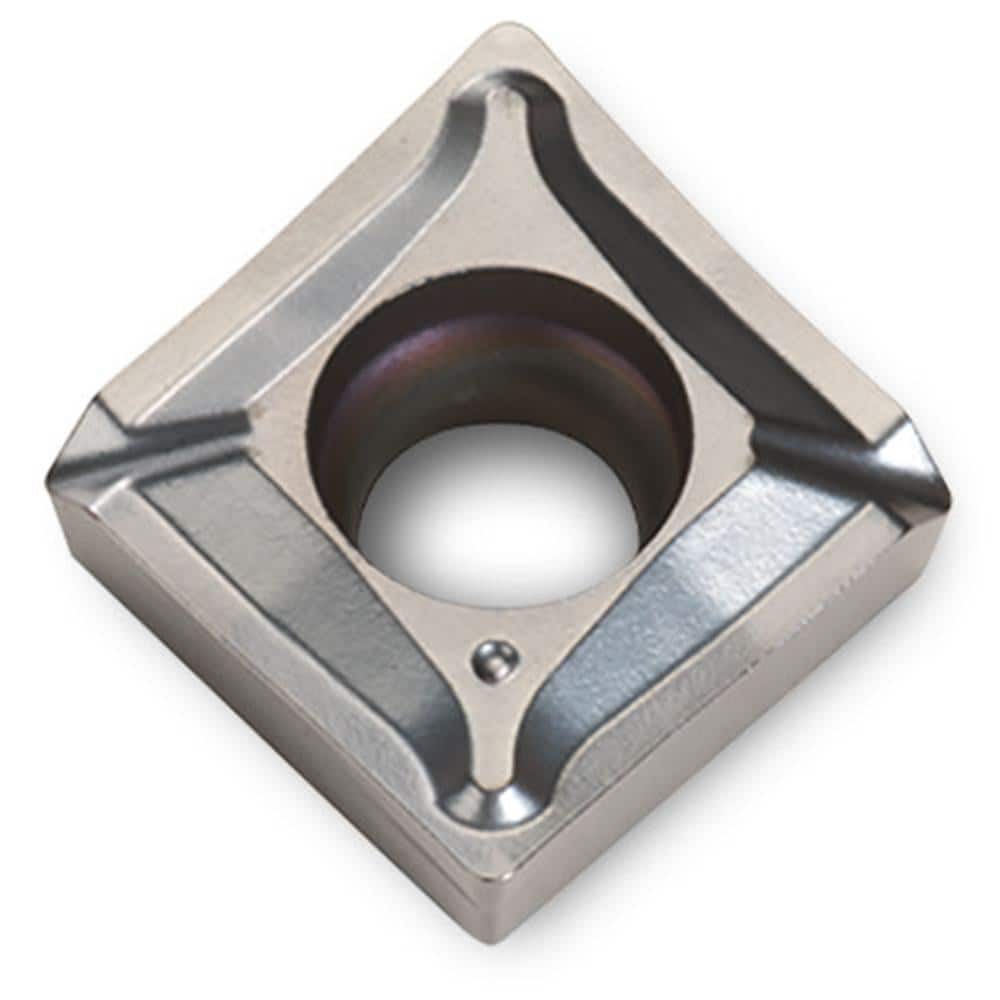

Indexable Drill Insert: XCMT10T308TC TT9030, Carbide Coated, 83.5 ° Diamond
Item #: 59669465
Brand: Ingersoll Cutting Tools
Model #: 5517961
Product Specifications
| Insert Style | XCMT |
| Insert Size Code | 10T308 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | TT9030 |
| Inscribed Circle (Decimal Inch) | 0.4130 |
| Cutting Direction | Neutral |
| Corner Radius (Decimal Inch) | 0.0310 |
| Chipbreaker | TC |
| Series | XCMT |
| Coating Process | PVD |
| Shape | Diamond |
| Number Of Cutting Edges | 2 |
| Relief Angle | 7 |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Iso Code | XCMT10T308TC TT9030 |
| Width (Decimal Inch - 4 Decimals) | 0.4130 |
| Length (Decimal Inch - 4 Decimals) | 0.4130 |
| Included Angle Degree | 83.50 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1560 |
| Coating/Finish | Coated |
