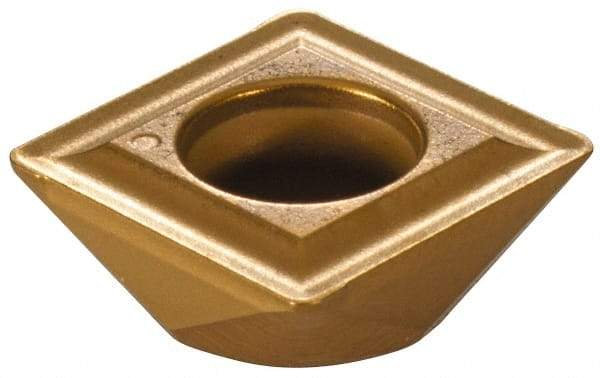

Everede Tool - N9MT11T3 CT Grade NC40 Carbide Indexable Drill Insert - TiN Finish, Square, 11mm Inscribed Circle
Item #: 59556431
Brand: Everede Tool
Model #: N9MT11T3CT-NC40
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness-resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Insert Style | N9MT |
| Insert Size | 11T3 |
| Material | Carbide |
| Material Grade | P35 |
| Manufacturer's Grade | NC40 |
| Inscribed Circle (mm) | 11.00 |
| Inscribed Circle (Decimal Inch) | 0.4331 |
| Thickness (mm) | 3.97 |
| Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Shape | Square |
| Included Angle | 90 |
| Coating | TiN |
| Chipbreaker | CT |
