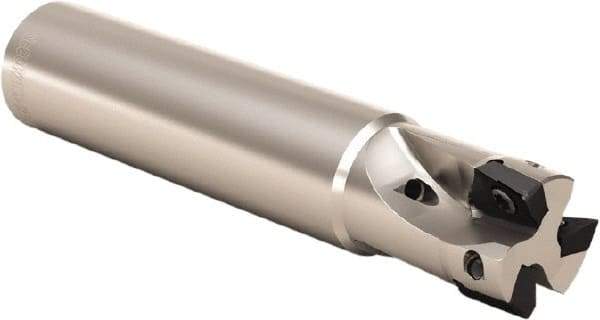

Seco - 3/8" Cut Diam, 0.197" Max Depth of Cut, 5/16" Shank Diam, 3.937" OAL, Indexable Square Shoulder End Mill - XO.X 0602 Inserts, Cylindrical Shank, 90° Lead Angle, Through Coolant, Series Nano Turbo
Item #: 59385229
Brand: Seco
Model #: 55419
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.3750 |
| Cutting Diameter (Inch) | 3/8 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 5/16 |
| Shank Diameter (Decimal Inch) | 0.3120 |
| Overall Length/Projection (Decimal Inch) | 3.9370 |
| Lead Angle | 90 |
| Series | Nano Turbo |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.1970 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Head Length (Decimal Inch) | 0.7090 |
| Weldon Flat | No |
| Insert Compatibility | XO.X 0602 |
| Shank Length (Decimal Inch) | 3.2280 |
| Maximum RPM | 60000 |
