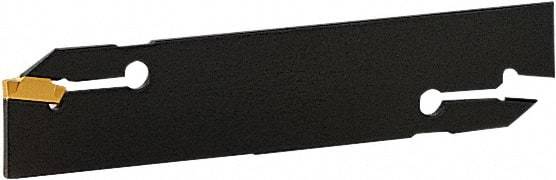

Seco - 2.0701" Blade Height, 1/4" Blade Width, 10.1969" OAL, Neutral Cut, Double End Indexable Cut-Off Blade - 8mm Max Depth of Cut, CFY Blade, MDT Series
Item #: 59349258
Brand: Seco
Model #: 44171
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Single or Double End | Double |
| Cutting Direction | Neutral |
| Blade Height (mm) | 52.58 |
| Blade Height (Decimal Inch) | 2.0701 |
| Blade Width (mm) | 6.35 |
| Blade Width (Decimal Inch) | 0.2500 |
| Blade Overall Length (mm) | 259.00 |
| Blade Overall Length (Decimal Inch) | 10.1969 |
| Blade Style | CFY |
| Series | MDT |
| Tool Block/Toolholder Style | CFYN50-08 |
| Insert Holding Method | Self Grip |
| Maximum Workpiece Diameter (Decimal Inch) | 2.9921 |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Cutting Height (mm) | 45.00 |
| Cutting Height (Decimal Inch) | 1.7717 |
| Complete Tool Block/Toolholder Style Compatibility | CFYN50-08 |
| Manufacturers Catalog Number | CFY150-08 |
| Overall Width (Decimal Inch) | 0.2500 |
