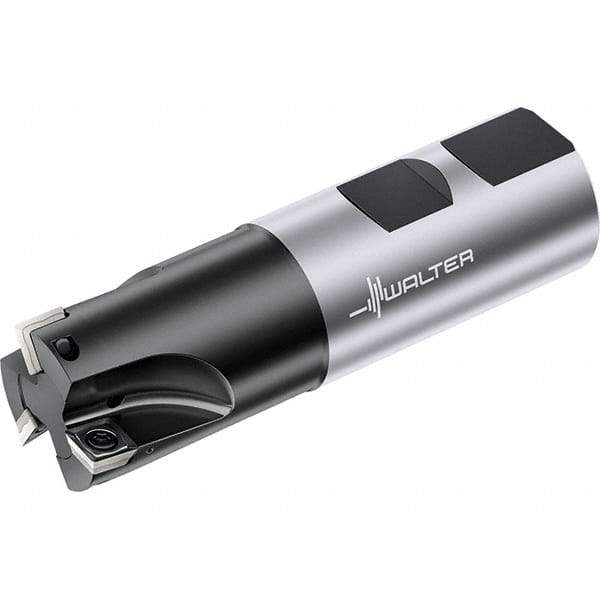

Walter - 1" Cut Diam, 8.4mm Max Depth of Cut, 1" Shank Diam, 92mm OAL, Indexable Square Shoulder End Mill - Weldon Shank, 0° Lead Angle, Through Coolant, Series M4132-UW
Item #: 59250282
Brand: Walter
Model #: 6556157
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.40 |
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Cutting Diameter (Inch) | 1 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 25.40 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Overall Length/Projection (mm) | 92.00 |
| Overall Length/Projection (Decimal Inch) | 3.6220 |
| Lead Angle | 0 |
| Series | M4132-UW |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 8.40 |
| Maximum Depth of Cut (Decimal Inch) | 0.331 |
| Number of Cutter Inserts | 2 |
| Number of Flutes | 2 |
| Maximum RPM | 37700 |
| Toolholder Material | Steel |
