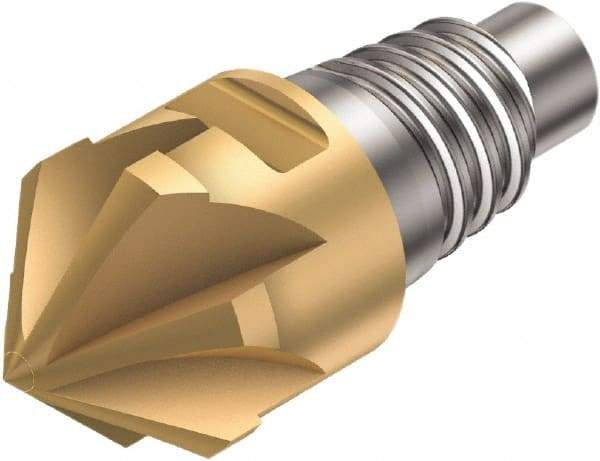

Sandvik Coromant - 316-CM Grade 1030 Carbide Chamfer Milling Tip Insert - TiAlN/TiN Finish, 8 Flutes, 16mm Cutting Diam, 6.5mm Depth of Cut, 18.7mm Extension, 0° Helix
Item #: 59241885
Brand: Sandvik Coromant
Model #: 5758499
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
TiAlN/TiN is a multilayer coating that combines the high hardness of TiN and the heat resistance of TiAlN. It is commonly used on softer materials in general purpose applications.
| Product Specifications | |
|---|---|
| Series | CoroMill 316 |
| Milling Tip Style | 316-CM |
| Milling Tip Type | Chamfer Mill |
| Material | Carbide |
| Cutting Diameter (mm) | 16.00 |
| Cutting Diameter (Decimal Inch) | 0.6299 |
| Manufacturer's Grade | 1030 |
| Depth of Cut (mm) | 6.50 |
| Depth of Cut (Decimal Inch) | 0.2559 |
| Number of Flutes | 8 |
| Coating | TiAlN/TiN |
| Milling Tip Full Description | Chamfering |
| Coating Process | PVD |
| Extension From Holder (mm) | 18.70 |
| Extension From Holder (Decimal Inch) | 0.7362 |
| Lead Angle | 45 |
| Helix Angle | 0 |
| Style | 316-CM |
| Manufacturers Catalog Number | 5758499 |
