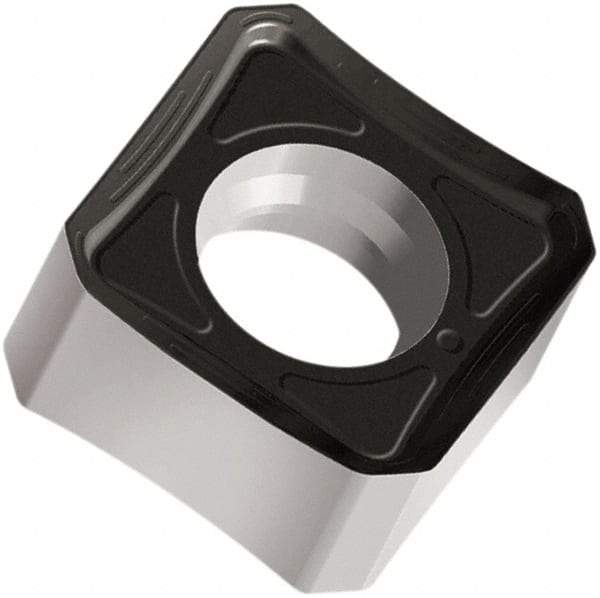

Walter - SNGX1606 F57 Grade WSP45S Carbide Milling Insert - TiAlN/Al2O3 Finish, 0.303" Thick, 5/8" Inscribed Circle, 1.19mm Corner Radius
Item #: 59183988
Brand: Walter
Model #: 6427171
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SNGX |
| Insert Size | 1606 |
| Material | Carbide |
| Manufacturer's Grade | WSP45S |
| Coating | TiAlN/Al2O3 |
| Width (Decimal Inch) | 0.6299 |
| Length (Decimal Inch) | 0.6299 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Thickness (Decimal Inch) | 0.3030 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Corner Radius (mm) | 1.19 |
| Relief Angle | 0.000 |
| Coating Process | PVD |
| Shape | Square |
| Insert Hand | Neutral |
| Chipbreaker | F57 |
