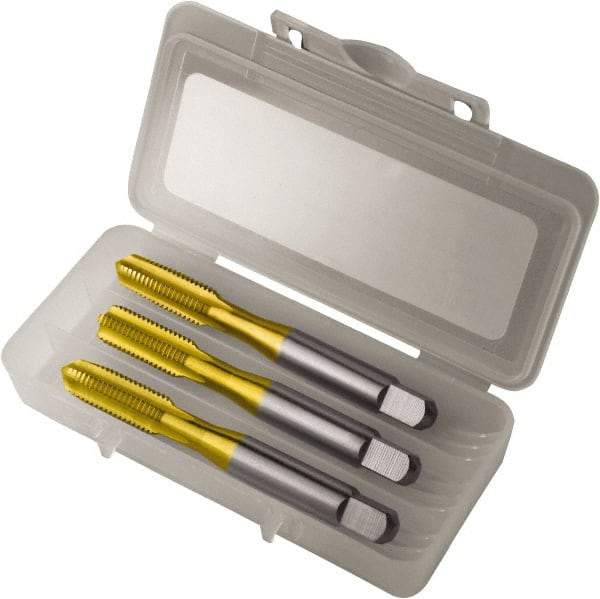

Vermont Tap & Die - 1/2-20 UNF, 4 Flute, Bottoming, Plug & Taper, TiN Finish, High Speed Steel Tap Set - Right Hand Cut, 3-3/8" OAL, 1-21/32" Thread Length, 2/3B Class of Fit, Series TN3105
Item #: 59036541
Brand: Vermont Tap & Die
Model #: 174505
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers have 1 to 2 threads. Plug chamfers have 3 to 5 threads. Taper chamfers have 7 to 10 threads and are typically used as a starter tap. They all can be used for threading blind holes.
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and non-ferrous materials.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Thread Size | 1/2-20 |
| Number of Flutes | 4 |
| Chamfer | Bottoming; Plug; Taper |
| Material | High Speed Steel |
| Finish/Coating | TiN |
| Thread Direction | Right Hand |
| Class of Fit | 2/3B |
| Thread Limit | H3 |
| Thread Length (Decimal Inch) | 0.9400 |
| Thread Length (Inch) | 1-21/32 |
| Overall Length (Decimal Inch) | 3.3750 |
| Overall Length (Inch) | 3-3/8 |
| Overall Length (mm) | 85.73 |
| Thread Standard | UNF |
| Series/List | TN3105 |
| Number of Pieces | 3 |
