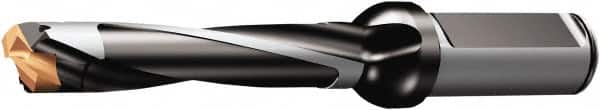

Sandvik Coromant - 14 to 14.99mm Diam, 5xD, 77.25mm Max Depth, 3/4" Shank Diam, 93.72mm Flute, 146mm OAL, Replaceable Tip Drill - 870-1490-14-PM Insert, 14 Seat Size, 870...LX-5 Toolholder, Series CoroDrill 870
Item #: 59013813
Brand: Sandvik Coromant
Model #: 6035672
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | CoroDrill 870 |
| Minimum Drill Diameter (mm) | 14.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.5512 |
| Maximum Drill Diameter (mm) | 14.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.5902 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 3.0413 |
| Maximum Drill Depth (mm) | 77.25 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.75 |
| Insert Style | 870-1490-14-PM |
| Insert Seat Size | 14 |
| Toolholder Style | 870...LX-5 |
| Through Coolant | Through Coolant |
| Shank Type | Straight |
| Tip Length (mm) | 2.28 |
| Tip Length (Decimal Inch) | 0.0898 |
| Flute Length (mm) | 93.72 |
| Flute Length (Decimal Inch) | 3.6898 |
| Body Length (mm) | 80.00 |
| Body Length (Decimal Inch) | 3.1496 |
| Overall Length (mm) | 146.00 |
| Overall Length (Decimal Inch) | 5.7480 |
| Toolholder Material | Steel |
| Shank Length (mm) | 50.00 |
| Shank Length (Decimal Inch) | 1.9685 |
