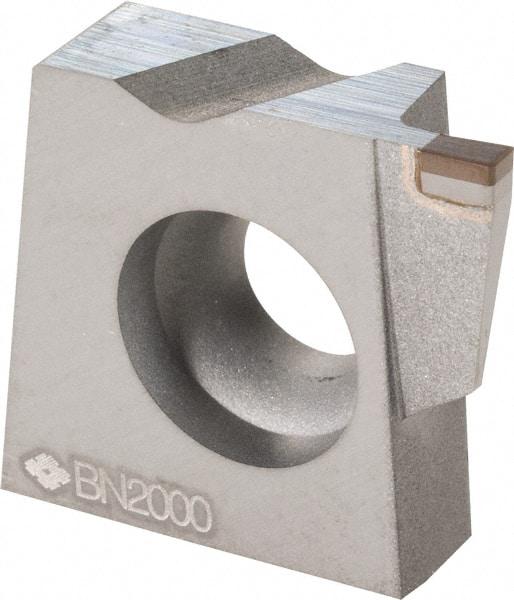

Sumitomo - 504150CGAL Grade BN2000, 0.059" Cutting Width CBN Grooving Insert - 0.197" Max Depth of Cut, Left Hand, 0.2mm Corner Radius
Item #: 59010165
Brand: Sumitomo
Model #: 54JR635
Exact Tooling IR#: 04
Features and Benefits
Cubic boron nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
| Product Specifications | |
|---|---|
| Insert Style | CGAL |
| Insert Size | 504150 |
| Material | CBN |
| Cutting Width (mm) | 1.50 |
| Cutting Width (Inch) | 0.0590 |
| Cutting Width (Decimal Inch) | 0.0590 |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Inch) | 0.1970 |
| Maximum Depth of Cut (Decimal Inch) | 0.1970 |
| Manufacturer's Grade | BN2000 |
| Insert Hand | Left Hand |
| Cutting Height (mm) | 25.40 |
| Cutting Height (Inch) | 1 |
| Cutting Height (Decimal Inch) | 1.0000 |
| Lead Angle | 3 |
| Multi-Use Tool | No |
| Minimum Corner Radius (Decimal Inch) | 0.0079 |
| Maximum Corner Radius (Decimal Inch) | 0.0079 |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Inch) | 0.0079 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Series | GWB |
