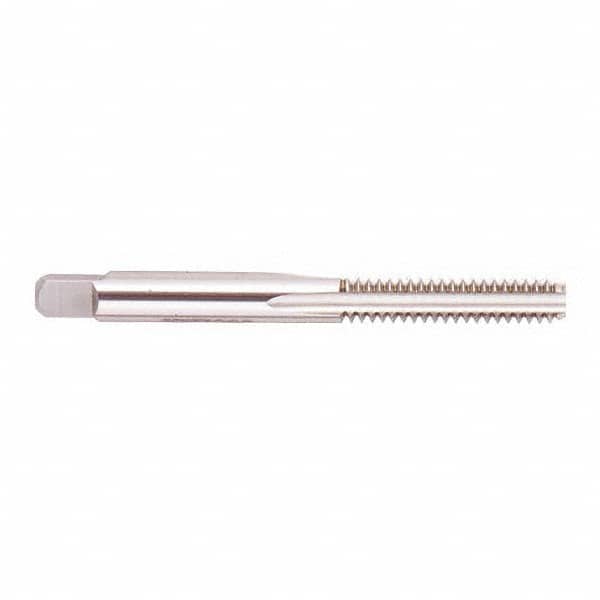

Regal Cutting Tools - M18x2.50 Metric Coarse 4 Flute Bright Finish High Speed Steel Straight Flute Standard Hand Tap - Bottoming, Right Hand Thread, 4-1/32" OAL, 1-13/16" Thread Length, D4 Limit, Oversize
Item #: 58883554
Brand: Regal Cutting Tools
Model #: 020377AS
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes. They have 1 to 2 threads.
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Tap Type | Standard Hand Tap |
| Thread Size (mm) | M18x2.50 |
| Thread Limit | D4 |
| Number of Flutes | 4 |
| Chamfer | Bottoming |
| Material | High Speed Steel |
| Finish/Coating | Bright |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | Metric Coarse |
| Overall Length (Decimal Inch) | 4.03130 |
| Overall Length (Inch) | 4-1/32 |
| Oversize | No |
| Thread Length (Decimal Inch) | 1.8125 |
| Thread Length (Inch) | 1-13/16 |
| Shank Diameter (Decimal Inch) | 0.5420 |
| Square Length (Inch) | 5/8 |
| Square Size (Decimal Inch) | 0.4060 |
