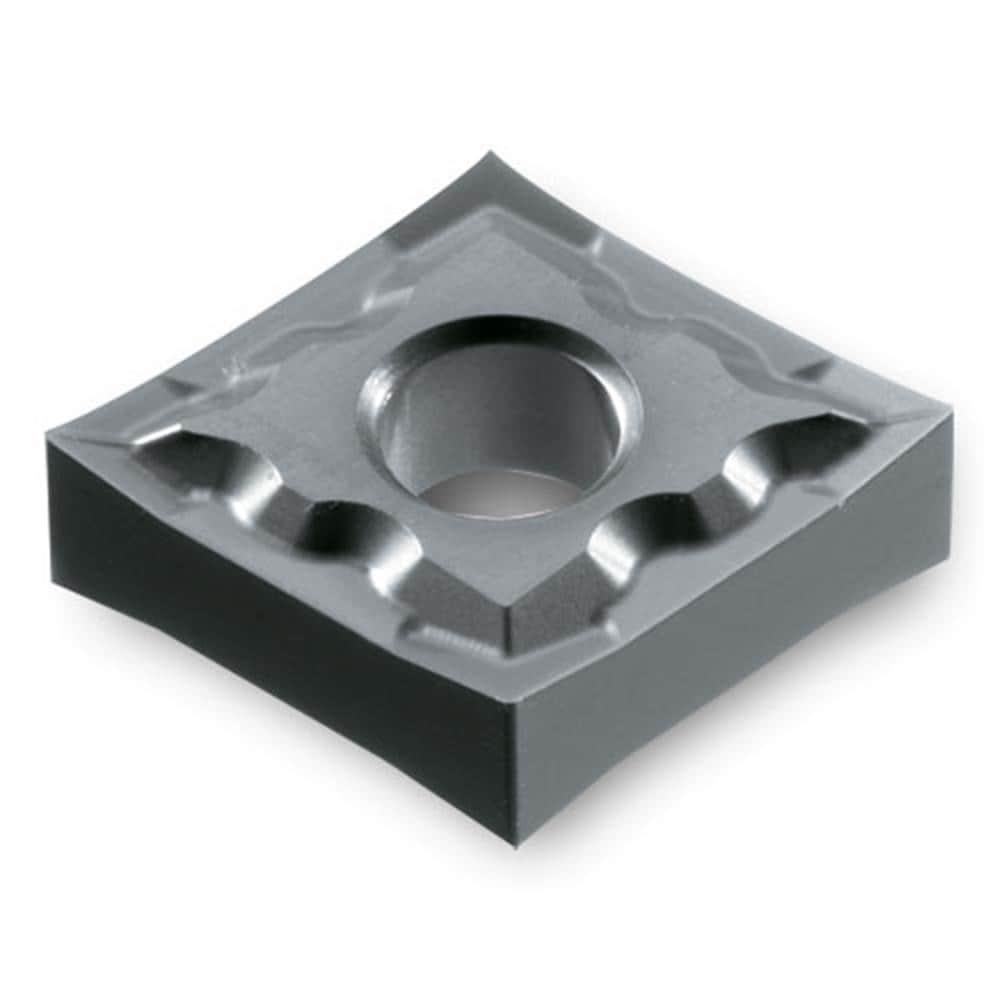

Turning Insert: CNGG330.5ML K10, Carbide
Item #: 32292682
Brand: Ingersoll Cutting Tools
Model #: 6139412
Product Specifications
| ANSI Insert Code | CNGG330.5 |
| ISO Insert Code | CNGG090402 |
| Relief Angle | 0 |
| Insert Style | CNGG |
| Corner Radius (Decimal Inch) | 0.0080 |
| Included Angle | 80 |
| Manufacturer Grade | K10 |
| Coating/Finish | Bright/Uncoated |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Series | CNGG |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Material | Carbide |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Chip Breaker Operation | Medium Machining; Roughing |
| Grade Characteristics | Cast Iron (K) - High Wear-Resistance; Special, Super Alloys (S) - High Wear-Resistance; Aluminum & Non-Ferrous (N) - High Wear-Resistance |
| Side Clearance | Negative |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | C |
| Maximum Depth of Cut (Decimal Inch) | 0.0470 |
| Insert Holding Method | Clamp |
| Clearance Code | N |
| Tolerance Code | G |
| Coating Process | Uncoated |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.3820 |
| Primary Workpiece Material | Non-Ferrous Metal; Superalloy; Cast Iron; Titanium |
| Primary Workpiece Material Code | S; K; N |
| Iso Code | CNGG090402ML K10 |
| Chip Breaker | ML |
| ANSI Size Code | 330.5 |
| ISO Size Code | 090402 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 330.5 |
