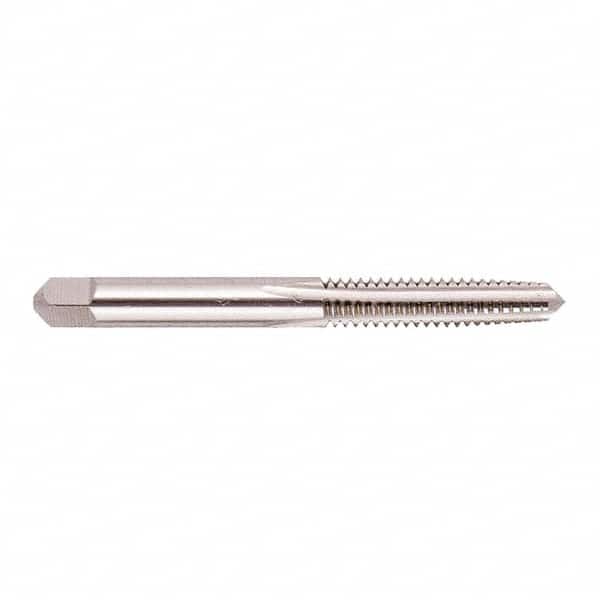

Regal Cutting Tools - #8-36 UNF 2B/3B 4 Flute Bright Finish Solid Carbide Straight Flute Standard Hand Tap - Plug, Right Hand Thread, 2-1/8" OAL, 3/4" Thread Length, H2 Limit, Oversize
Item #: 58821091
Brand: Regal Cutting Tools
Model #: 018450RS
Exact Tooling IR#: 04
Features and Benefits
Plug chamfers are the most commonly used chamfer and designed for efficiently threading through and blind holes. They have 3 to 5 threads.
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Tap Type | Standard Hand Tap |
| Thread Size (Inch) | #8-36 |
| Class of Fit | 2B/3B |
| Thread Limit | H2 |
| Number of Flutes | 4 |
| Chamfer | Plug |
| Material | Solid Carbide |
| Finish/Coating | Bright |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | UNF |
| Overall Length (Decimal Inch) | 2.12500 |
| Overall Length (Inch) | 2-1/8 |
| Oversize | No |
| Material Grade | Micrograin |
| Thread Length (Decimal Inch) | 0.7500 |
| Thread Length (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.1680 |
| Square Length (Inch) | 1/4 |
| Square Size (Decimal Inch) | 0.1310 |
