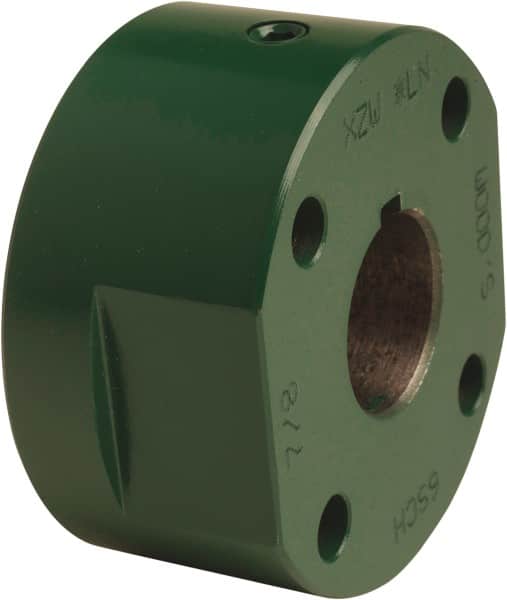

TB Wood's - 1-5/8" Bore, 3/8" x 3/16" Keyway Width x Depth, 2-13/16" Hub, 7 Flexible Coupling Hub - 2-13/16" OD, 1-15/32" OAL, Cast Iron, Order 2 Hubs, 2 Flanges & 1 Sleeve for Complete Coupling
Item #: 58792383
Brand: TB Wood's
Model #: 7SCH158
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Hub |
| Bore Diameter (Decimal Inch) | 1.6250 |
| Maximum Bore Diameter (Inch) | 1-5/8 |
| Minimum Bore Diameter (Inch) | 1-5/8 |
| Minimum Bore Diameter (Decimal Inch) | 1.6250 |
| Outside Diameter (Decimal Inch) | 2.8125 |
| Outside Diameter (Inch) | 2-13/16 |
| Overall Length (Inch) | 1-15/32 |
| Overall Length (Decimal Inch) | 1.4688 |
| Material | Cast Iron |
| Special Item Information | For Complete Coupling, order 2 coupling hubs to the correct bore, 2 matching Flanges and 1 Sleeve |
| Coupling Size | 7 |
| Series | Sure-Flex |
| PSC Code | 5340 |
