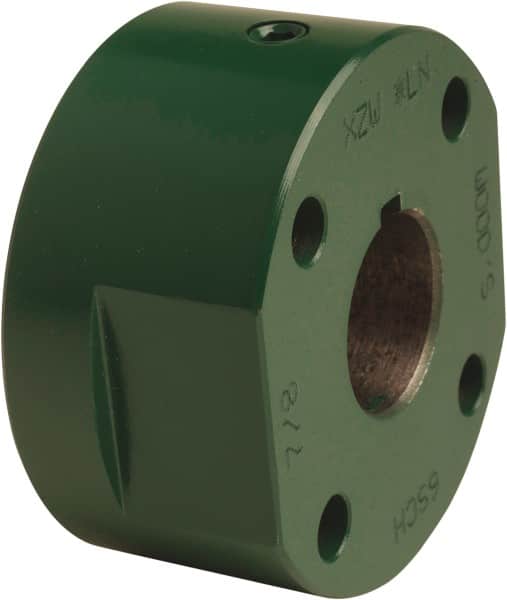

TB Wood's - 1-5/8" Bore, 3/8" x 3/16" Keyway Width x Depth, 3-5/8" Hub, 9 Flexible Coupling Hub - 3-5/8" OD, 1-31/32" OAL, Cast Iron, Order 2 Hubs, 2 Flanges & 1 Sleeve for Complete Coupling
Item #: 58792276
Brand: TB Wood's
Model #: 9SCH158
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Hub |
| Bore Diameter (Decimal Inch) | 1.6250 |
| Maximum Bore Diameter (Inch) | 1-5/8 |
| Minimum Bore Diameter (Inch) | 1-5/8 |
| Minimum Bore Diameter (Decimal Inch) | 1.6250 |
| Outside Diameter (Decimal Inch) | 3.6250 |
| Outside Diameter (Inch) | 3-5/8 |
| Overall Length (Inch) | 1-31/32 |
| Overall Length (Decimal Inch) | 1.9688 |
| Material | Cast Iron |
| Special Item Information | For Complete Coupling, order 2 coupling hubs to the correct bore, 2 matching Flanges and 1 Sleeve |
| Coupling Size | 9 |
| Series | Sure-Flex |
| PSC Code | 5340 |
