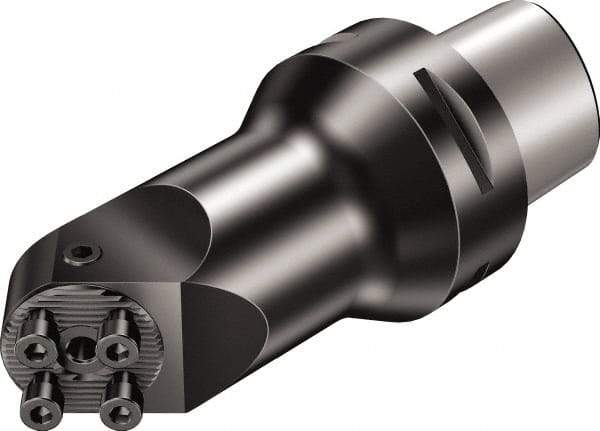

Sandvik Coromant - 32mm Bore Diam, 63mm Body Diam x 100mm Body Length, Boring Bar Holder & Adapter - 4.08" Screw Thread Lock, 3-15/16" Bore Depth, Internal Coolant
Item #: 58789835
Brand: Sandvik Coromant
Model #: 5729344
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Bore Diameter (mm) | 32.0000 |
| Bore Diameter (Decimal Inch) | 1.2598 |
| Connection Size | C6 |
| Body Diameter (mm) | 63.00 |
| Body Diameter (Decimal Inch) | 2.4803 |
| Body Length (mm) | 100.00 |
| Body Length (Decimal Inch) | 3.9370 |
| Lock Screw Size (Decimal Inch) | 4.0800 |
| Lock Screw Compatibility | 3212 010-308 |
| Bore Depth (mm) | 100.00 |
| Bore Depth (Decimal Inch) | 3.9370 |
| Coolant Type | Internal |
| Manufacturer's Part Number | C6-570-32-RX-045-L1 |
| Head Style | Head |
