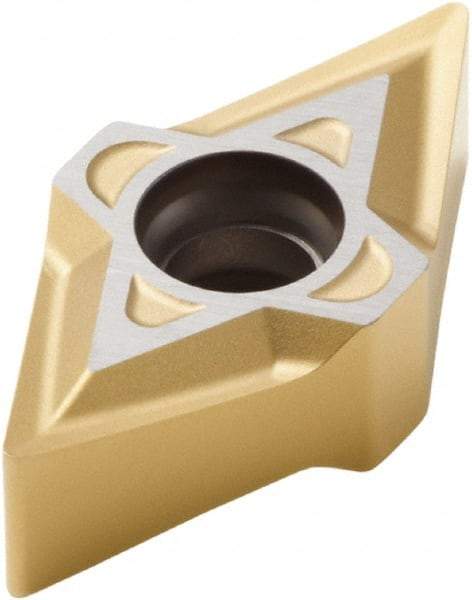

Seco - DNMU331 MF1 Grade CP500 Carbide Turning Insert - 55° Diamond, 3/8" Inscr Circle, 3/16" Thick, 1/64" Corner Radius
Item #: 58727769
Brand: Seco
Model #: 43360
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DNMU |
| Insert Size | 331 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1880 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Manufacturer's Grade | CP500 |
| Chip Breaker | MF1 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Relief Angle | 0 |
| Manufacturers Catalog Number | DNMU331MF |
| Primary Workpiece Material | M |
| Secondary Workpiece Material | P; S |
| Included Angle | 55 |
| Insert Holding Method | Pin & Clamp |
| Shape | Diamond |
