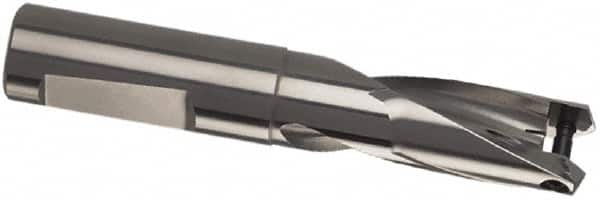

Guhring - 11.5 to 11.99mm Diam, 1.5xD, 20.1mm Max Depth, 12mm Shank Diam, 85mm Flute, 85mm OAL, Replaceable Tip Drill - HT 800 WP Insert, 115 Seat Size, 1.5xD HT 800 WP Toolholder, Series 4106
Item #: 58571316
Brand: Guhring
Model #: 9041060115000
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | 4106 |
| Minimum Drill Diameter (mm) | 11.50 |
| Minimum Drill Diameter (Decimal Inch) | 0.4528 |
| Maximum Drill Diameter (mm) | 11.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.4720 |
| Drill Depth by Diameter Ratio | 1.5xD |
| Maximum Drill Depth (mm) | 20.10 |
| Shank Diameter (mm) | 12.00 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Insert Style | HT 800 WP |
| Insert Seat Size | 115 |
| Toolholder Style | 1.5xD HT 800 WP |
| Through Coolant | Through Coolant |
| Shank Type | Whistle Notch |
| Flute Length (mm) | 85.00 |
| Toolholder Coating | Nickel |
| Overall Length (mm) | 85.00 |
| Toolholder Material | High Speed Steel |
