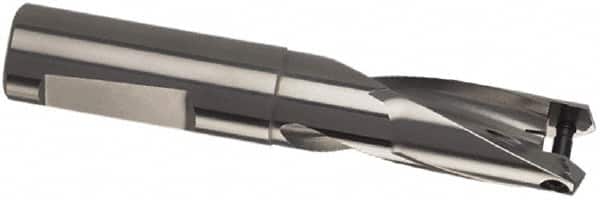

Guhring - 13 to 13.49mm Diam, 1.5xD, 21.9mm Max Depth, 5/8" Shank Diam, 89mm Flute, 89mm OAL, Replaceable Tip Drill - HT 800 WP Insert, 125 Seat Size, 1.5xD HT 800 WP Toolholder, Series 4106
Item #: 58569872
Brand: Guhring
Model #: 9041060125050
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | 4106 |
| Minimum Drill Diameter (mm) | 13.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.5118 |
| Maximum Drill Diameter (mm) | 13.49 |
| Maximum Drill Diameter (Decimal Inch) | 0.5311 |
| Drill Depth by Diameter Ratio | 1.5xD |
| Maximum Drill Depth (mm) | 21.90 |
| Shank Diameter (mm) | 15.88 |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Insert Style | HT 800 WP |
| Insert Seat Size | 125 |
| Toolholder Style | 1.5xD HT 800 WP |
| Through Coolant | Through Coolant |
| Shank Type | Whistle Notch |
| Flute Length (mm) | 89.00 |
| Toolholder Coating | Nickel |
| Overall Length (mm) | 89.00 |
| Toolholder Material | High Speed Steel |
