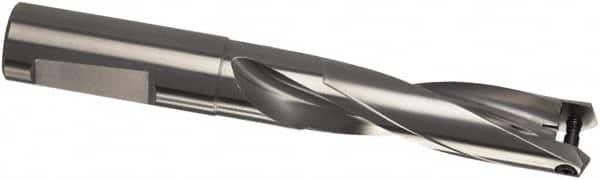

Guhring - 23 to 23.49mm Diam, 3xD, 73.3mm Max Depth, 25mm Shank Diam, 168mm Flute, 168mm OAL, Replaceable Tip Drill - HT 800 WP Insert, 225 Seat Size, 3xD HT 800 WP Toolholder, Series 4107
Item #: 58569344
Brand: Guhring
Model #: 9041070225000
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | 4107 |
| Minimum Drill Diameter (mm) | 23.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.9055 |
| Maximum Drill Diameter (mm) | 23.49 |
| Maximum Drill Diameter (Decimal Inch) | 0.9248 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (mm) | 73.30 |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Insert Style | HT 800 WP |
| Insert Seat Size | 225 |
| Toolholder Style | 3xD HT 800 WP |
| Through Coolant | Through Coolant |
| Shank Type | Whistle Notch |
| Flute Length (mm) | 168.00 |
| Toolholder Coating | Nickel |
| Overall Length (mm) | 168.00 |
| Toolholder Material | High Speed Steel |
