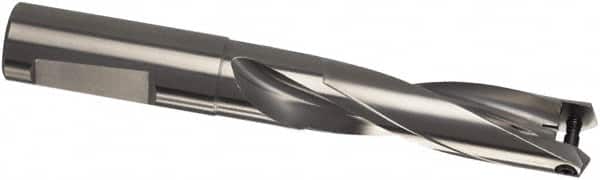

Guhring - 11 to 11.49mm Diam, 3xD, 82.9mm Max Depth, 32mm Shank Diam, 187mm Flute, 187mm OAL, Replaceable Tip Drill - HT 800 WP Insert, 255 Seat Size, 3xD HT 800 WP Toolholder, Series 4107
Item #: 58569294
Brand: Guhring
Model #: 9041070255000
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | 4107 |
| Minimum Drill Diameter (mm) | 11.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.4331 |
| Maximum Drill Diameter (mm) | 11.49 |
| Maximum Drill Diameter (Decimal Inch) | 0.4524 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (mm) | 82.90 |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Insert Style | HT 800 WP |
| Insert Seat Size | 255 |
| Toolholder Style | 3xD HT 800 WP |
| Through Coolant | Through Coolant |
| Shank Type | Whistle Notch |
| Flute Length (mm) | 187.00 |
| Toolholder Coating | Nickel |
| Overall Length (mm) | 187.00 |
| Toolholder Material | High Speed Steel |
