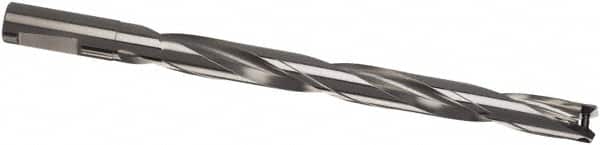

Guhring - 20 to 20.49mm Diam, 10xD, 208.9mm Max Depth, 20mm Shank Diam, 292mm Flute, 292mm OAL, Replaceable Tip Drill - HT 800 WP Insert, 200 Seat Size, 10xD HT 800 WP Toolholder, Series 4110
Item #: 58569047
Brand: Guhring
Model #: 9041100200000
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | 4110 |
| Minimum Drill Diameter (mm) | 20.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.7874 |
| Maximum Drill Diameter (mm) | 20.49 |
| Maximum Drill Diameter (Decimal Inch) | 0.8067 |
| Drill Depth by Diameter Ratio | 10xD |
| Maximum Drill Depth (mm) | 208.90 |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Insert Style | HT 800 WP |
| Insert Seat Size | 200 |
| Toolholder Style | 10xD HT 800 WP |
| Through Coolant | Through Coolant |
| Shank Type | Whistle Notch |
| Flute Length (mm) | 292.00 |
| Toolholder Coating | Nickel |
| Overall Length (mm) | 292.00 |
| Toolholder Material | High Speed Steel |
