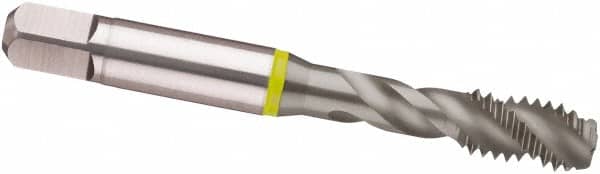

Guhring - 7/8-14 UNF 4 Flute 2B Modified Bottoming Spiral Flute Tap - Cobalt, MolyGlide Finish, 4.689" OAL, Right Hand Flute, Right Hand Thread, H6/H7, Series 3965
Item #: 58541632
Brand: Guhring
Model #: 9039650222250
Exact Tooling IR#: 04
Features and Benefits
Modified bottoming chamfers are similar to bottoming chamfers, but they are longer and have more teeth. They are used for threading blind holes and have 2 to 2-1/2 threads.
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
MolyGlide is a non-stick, low friction coating that has good sliding properties. It is commonly used for dry applications or where lubrication is minimal. MolyGlide is a proprietary coating exclusive to Guhring, Inc.
Fast Spiral Flutes with 40-53 degree angles are suitable for ductile materials like aluminum and copper; medium to high carbon steels and free machining stainless steels.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | 7/8-14 |
| Chamfer | Modified Bottoming |
| Class of Fit | 2B |
| Thread Limit | H6/H7 |
| Number of Flutes | 4 |
| Material | Cobalt |
| Finish/Coating | MolyGlide |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (Decimal Inch) | 4.6890 |
| Helix Angle | 40 |
| Thread Standard | UNF |
| Flute Type | Fast Spiral |
| Series/List | 3965 |
