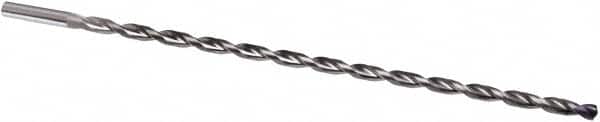

Extra Length Drill Bit: 0.5157″ Dia, 135 °, Solid Carbide TiAlN (Tip) Finish, Spiral Flute, Straight-Cylindrical Shank, Series 6509
Item #: 58527508
Brand: Guhring
Model #: 9065090131000
Product Specifications
| Overall Length (mm) | 297.00 |
| Flute Length (mm) | 248.00 |
| Tool Material | Solid Carbide |
| Coating/Finish | TiAlN (Tip) |
| Drill Point Angle | 135 |
| Shank Type | Straight-Cylindrical |
| Coolant Through | Yes |
| Flute Type | Spiral |
| Series | 6509 |
| Point Type | Cone Relief |
| Cutting Direction | Right Hand |
| Spiral Type | Regular |
| Drill Bit Diameter Tolerance | h7 |
| Number Of Flutes | 2 |
| Web Thinning | Web-Thinned |
| Secondary Workpiece Material | Alloy Steel; Stainless Steel; Nickel Alloy |
| Drill Bit Grade | High Performance |
| Drill Bit Size (Decimal Inch) | 0.5157 |
| Shank Diameter (mm) | 14.00 |
| Flute By Diameter Ratio | 15xD |
