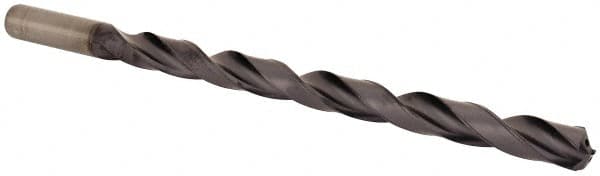

Extra Length Drill Bit: 0.5512″ Dia, 135 °, Solid Carbide Multilayer TiAlN Finish, 7.7953″ Flute Length, Spiral Flute, Straight-Cylindrical Shank, Series B269-HP
Item #: 58517723
Brand: Kennametal
Model #: 4136210
Product Specifications
| Drill Bit Size (mm) | 14.00 |
| Overall Length (mm) | 246.00 |
| Flute Length (mm) | 198.00 |
| Tool Material | Solid Carbide |
| Coating/Finish | Multilayer TiAlN |
| Drill Point Angle | 135 |
| Shank Type | Straight-Cylindrical |
| Coolant Through | Yes |
| Flute Type | Spiral |
| Series | B269-HP |
| Point Type | Standard |
| Cutting Direction | Right Hand |
| Spiral Type | Regular |
| Drill Bit Diameter Tolerance | +0.007 to +0.025 mm; 0.0003 to 0.0010 in |
| Number Of Flutes | 2 |
| Web Configuration | Tapered |
| Drill Bit Size (Decimal Inch) | 0.5512 |
| Drill Point Length (mm) | 2.61 |
| Drill Point Length (Decimal Inch) | 0.1026 |
| Shank Diameter (Decimal Inch) | 0.5512 |
| Shank Diameter (mm) | 14.00 |
| Shank Length (Decimal Inch) | 1.7717 |
| Shank Length (mm) | 45.00 |
| Flute Length (Decimal Inch) | 7.7953 |
| Flute By Diameter Ratio | 12xD |
| Maximum Drilling Depth (Decimal Inch) | 6.6142 |
| Maximum Drilling Depth (mm) | 168.00 |
| Specification Designation | DIN |
