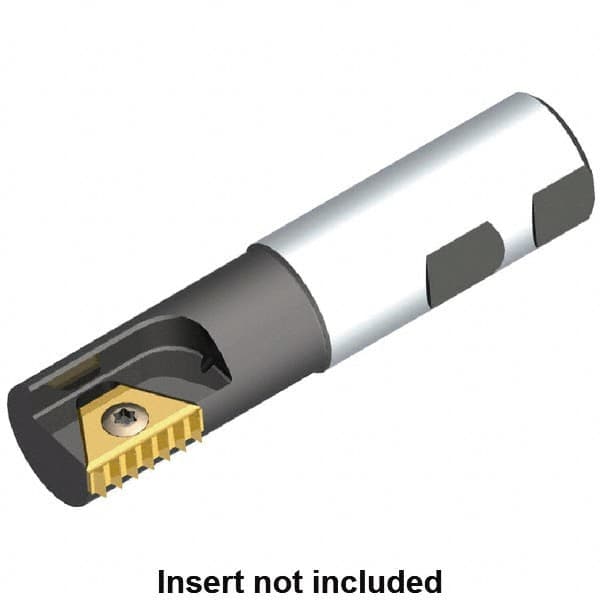

Kennametal - 17mm Cut Diam, 22mm Max Hole Depth, 16mm Shank Diam, Internal/External Indexable Thread Mill - Insert Style STN 16, 16mm Insert Size, 1 Insert, Toolholder Style TMS, 90mm OAL
Item #: 58508516
Brand: Kennametal
Model #: 1130686
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 17.00 |
| Cutting Diameter (Decimal Inch) | 0.6692 |
| Maximum Hole Depth (mm) | 22.00 |
| Insert Style | STN 16 |
| Insert Size (mm) | 16.00 |
| Insert Size (Decimal Inch) | 0.6300 |
| Toolholder Style | TMS |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Overall Length (mm) | 90.00 |
| Overall Length (Decimal Inch) | 3.5433 |
| Number of Threading Inserts | 1 |
| Thread Type | Internal/External |
| Cutting Direction | Neutral |
| Through Coolant | Through Coolant |
| Insert Holding Method | Screw |
| Number of Flutes | 1 |
| Neck Diameter (mm) | 13.60 |
| Neck Diameter (Decimal Inch) | 0.5354 |
| Insert Inscribed Circle (Inch) | 3/8 |
