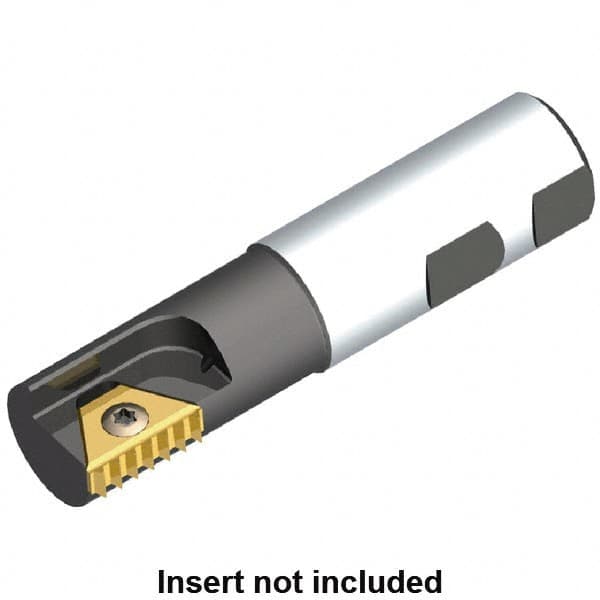

Kennametal - 20mm Cut Diam, 43mm Max Hole Depth, 20mm Shank Diam, Internal/External Indexable Thread Mill - Insert Style STN 16, 16mm Insert Size, 1 Insert, Toolholder Style TMS, 95mm OAL
Item #: 58506486
Brand: Kennametal
Model #: 1130740
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 20.00 |
| Cutting Diameter (Decimal Inch) | 0.7874 |
| Maximum Hole Depth (mm) | 43.00 |
| Insert Style | STN 16 |
| Insert Size (mm) | 16.00 |
| Insert Size (Decimal Inch) | 0.6300 |
| Toolholder Style | TMS |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Overall Length (mm) | 95.00 |
| Overall Length (Decimal Inch) | 3.7402 |
| Number of Threading Inserts | 1 |
| Thread Type | Internal/External |
| Cutting Direction | Neutral |
| Through Coolant | Through Coolant |
| Insert Holding Method | Screw |
| Number of Flutes | 1 |
| Neck Diameter (mm) | 16.60 |
| Neck Diameter (Decimal Inch) | 0.6535 |
| Insert Inscribed Circle (Inch) | 3/8 |
