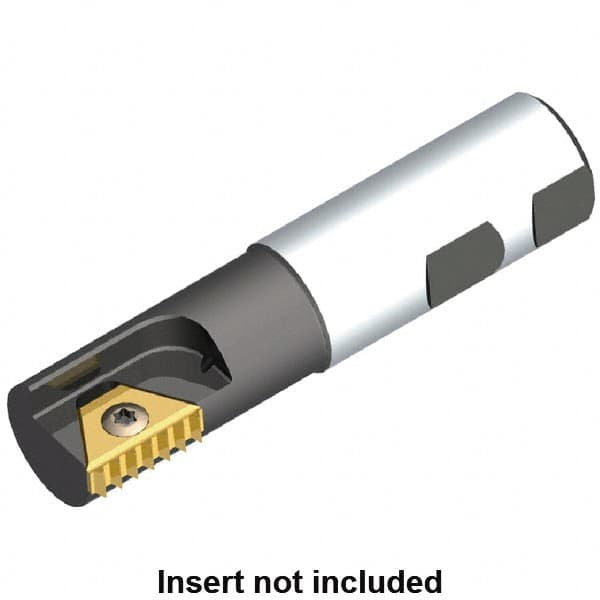

Kennametal - 22mm Cut Diam, 25mm Max Hole Depth, 63/64" Shank Diam, Internal/External Indexable Thread Mill - Insert Style STN 16, 16mm Insert Size, 1 Insert, Toolholder Style TMS, 125mm OAL
Item #: 58506478
Brand: Kennametal
Model #: 1130837
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 22.00 |
| Cutting Diameter (Decimal Inch) | 0.8661 |
| Maximum Hole Depth (mm) | 25.00 |
| Insert Style | STN 16 |
| Insert Size (mm) | 16.00 |
| Insert Size (Decimal Inch) | 0.6299 |
| Toolholder Style | TMS |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Inch) | 63/64 |
| Shank Diameter (Decimal Inch) | 0.9844 |
| Overall Length (mm) | 125.00 |
| Overall Length (Decimal Inch) | 4.9213 |
| Number of Threading Inserts | 1 |
| Thread Type | Internal/External |
| Cutting Direction | Neutral |
| Through Coolant | Through Coolant |
| Insert Holding Method | Screw |
| Number of Flutes | 1 |
| Neck Diameter (mm) | 18.60 |
| Neck Diameter (Decimal Inch) | 0.7323 |
| Insert Inscribed Circle (Inch) | 3/8 |
