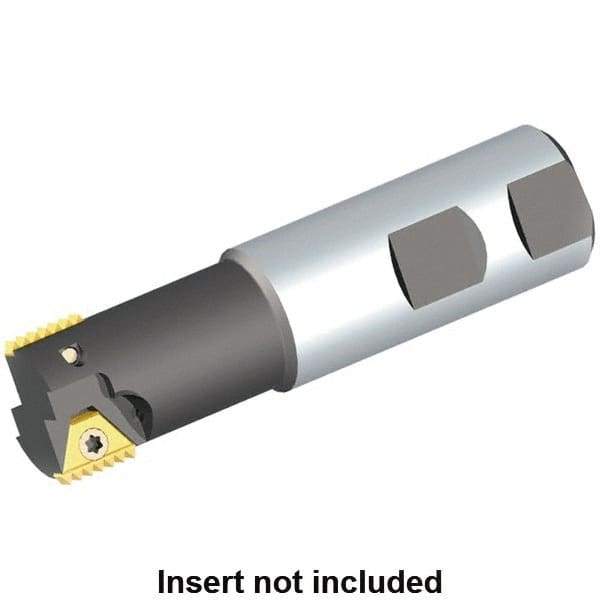

Kennametal - 42mm Cut Diam, 45mm Max Hole Depth, 32mm Shank Diam, Internal/External Indexable Thread Mill - Insert Style STN 27, 27mm Insert Size, 2 Inserts, Toolholder Style TMS, 120mm OAL
Item #: 58506437
Brand: Kennametal
Model #: 1131118
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 42.00 |
| Cutting Diameter (Decimal Inch) | 1.6535 |
| Maximum Hole Depth (mm) | 45.00 |
| Maximum Hole Depth (Decimal Inch) | 1.7717 |
| Insert Style | STN 27 |
| Insert Size (mm) | 27.00 |
| Insert Size (Decimal Inch) | 1.0630 |
| Toolholder Style | TMS |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Overall Length (mm) | 120.00 |
| Overall Length (Decimal Inch) | 4.7244 |
| Number of Threading Inserts | 2 |
| Thread Type | Internal/External |
| Cutting Direction | Neutral |
| Through Coolant | Through Coolant |
| Insert Holding Method | Screw |
| Number of Flutes | 2 |
| Neck Diameter (mm) | 36.00 |
| Neck Diameter (Decimal Inch) | 1.4173 |
| Insert Inscribed Circle (Inch) | 5/8 |
