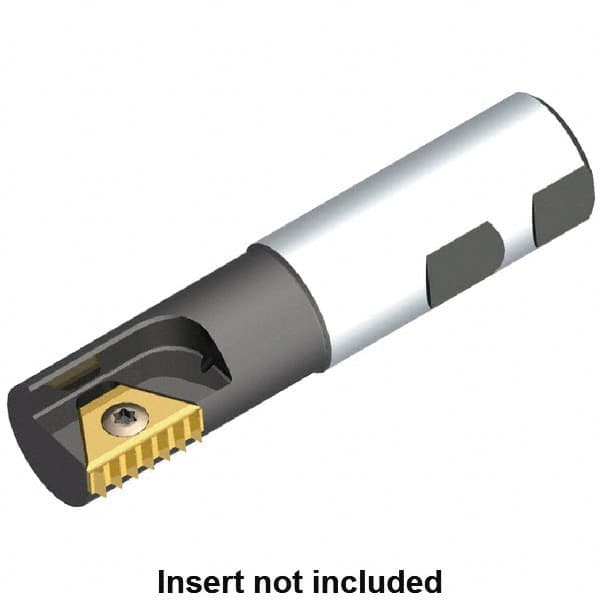

Kennametal - 25mm Cut Diam, 40mm Max Hole Depth, 63/64" Shank Diam, Internal Indexable Thread Mill - Insert Style STN 27.. C, 27mm Insert Size, 1 Insert, Toolholder Style TMS, 98mm OAL
Item #: 58506387
Brand: Kennametal
Model #: 1176967
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.00 |
| Cutting Diameter (Decimal Inch) | 0.9843 |
| Maximum Hole Depth (mm) | 40.00 |
| Maximum Hole Depth (Decimal Inch) | 1.5748 |
| Insert Style | STN 27.. C |
| Insert Size (mm) | 27.00 |
| Toolholder Style | TMS |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Inch) | 63/64 |
| Shank Diameter (Decimal Inch) | 0.9844 |
| Overall Length (mm) | 98.00 |
| Number of Threading Inserts | 1 |
| Thread Type | Internal |
| Through Coolant | Through Coolant |
| Insert Holding Method | Screw |
| Number of Flutes | 1 |
| Neck Diameter (mm) | 19.00 |
| Neck Diameter (Decimal Inch) | 0.7480 |
