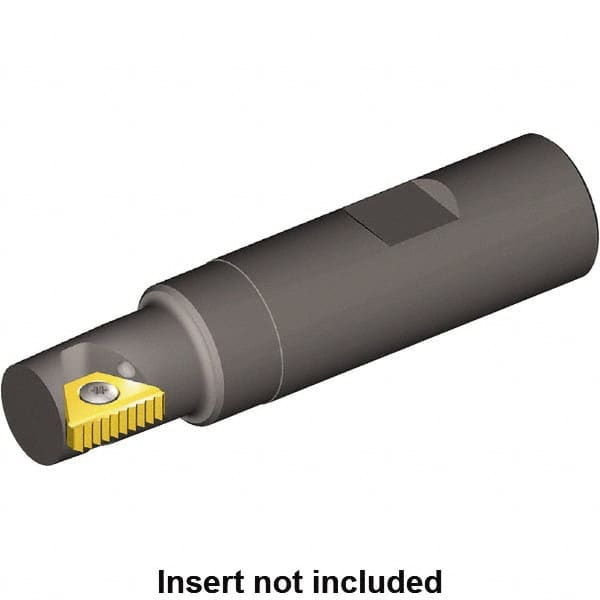

Kennametal - 9.9mm Cut Diam, 15.5mm Max Hole Depth, 20mm Shank Diam, Internal/External Indexable Thread Mill - Insert Style STN 11, 11mm Insert Size, 1 Insert, Toolholder Style TMS, 77mm OAL
Item #: 58506379
Brand: Kennametal
Model #: 1176970
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 9.90 |
| Cutting Diameter (Decimal Inch) | 0.3898 |
| Maximum Hole Depth (mm) | 15.50 |
| Maximum Hole Depth (Decimal Inch) | 0.6102 |
| Insert Style | STN 11 |
| Insert Size (mm) | 11.00 |
| Toolholder Style | TMS |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Overall Length (mm) | 77.00 |
| Overall Length (Decimal Inch) | 3.0315 |
| Number of Threading Inserts | 1 |
| Thread Type | Internal/External |
| Cutting Direction | Neutral |
| Through Coolant | Through Coolant |
| Insert Holding Method | Screw |
| Number of Flutes | 1 |
| Neck Diameter (mm) | 7.40 |
| Neck Diameter (Decimal Inch) | 0.2913 |
| Insert Inscribed Circle (Inch) | 1/4 |
