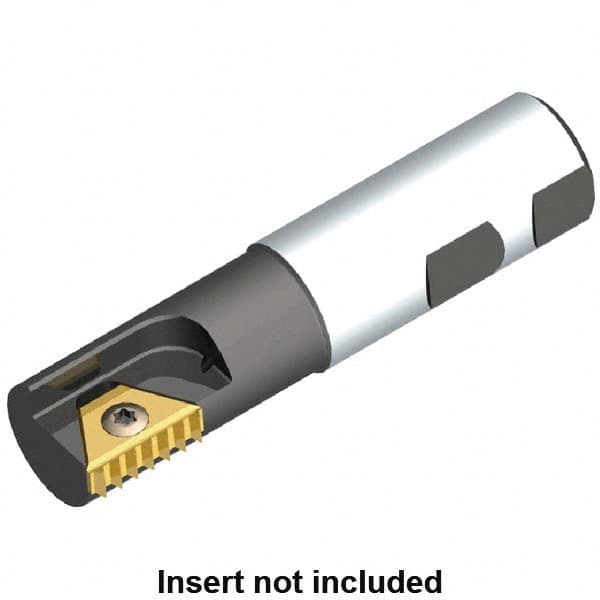

Kennametal - 46mm Cut Diam, 100mm Max Hole Depth, 40mm Shank Diam, Internal/External Indexable Thread Mill - Insert Style STNB 38, 38.5mm Insert Size, 1 Insert, Toolholder Style TMS, 170mm OAL
Item #: 58506346
Brand: Kennametal
Model #: 1566071
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 46.00 |
| Cutting Diameter (Decimal Inch) | 1.8110 |
| Maximum Hole Depth (mm) | 100.00 |
| Insert Style | STNB 38 |
| Insert Size (mm) | 38.50 |
| Insert Size (Decimal Inch) | 1.5157 |
| Toolholder Style | TMS |
| Shank Diameter (mm) | 40.00 |
| Shank Diameter (Decimal Inch) | 1.5748 |
| Overall Length (mm) | 170.00 |
| Overall Length (Decimal Inch) | 6.6929 |
| Number of Threading Inserts | 1 |
| Thread Type | Internal/External |
| Cutting Direction | Neutral |
| Through Coolant | Through Coolant |
| Insert Holding Method | Screw |
| Number of Flutes | 1 |
| Neck Diameter (mm) | 38.00 |
| Neck Diameter (Decimal Inch) | 1.4961 |
