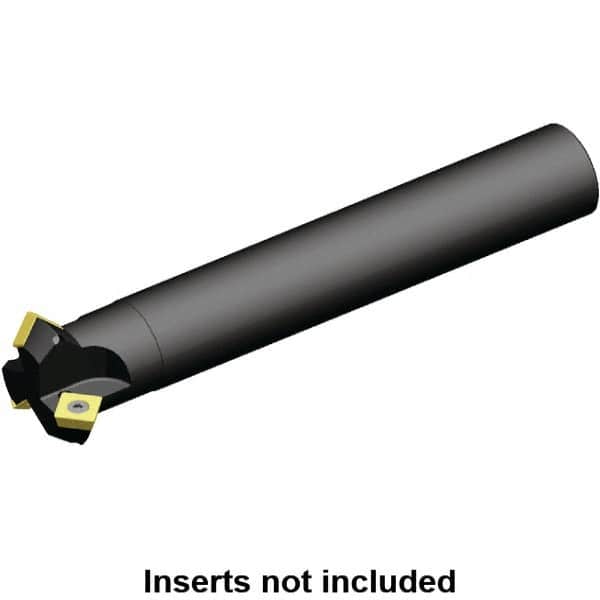

Kennametal - 45° Lead Angle, 49mm Max Cut Diam, 32mm Min Cut Diam, 9mm Max Depth of Cut, Indexable Chamfer and Angle End Mill - 3 Inserts, SP.. 1204.. Insert Style, 200mm Overall Length, Straight Shank
Item #: 58500869
Brand: Kennametal
Model #: 1024609
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Minimum Cutting Diameter (Decimal Inch) | 1.2598 |
| Minimum Cutting Diameter (mm) | 32.00 |
| Maximum Cutting Diameter (mm) | 49.00 |
| Maximum Cutting Diameter (Decimal Inch) | 1.9291 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Lead Angle | 45 |
| Overall Length (mm) | 200.00 |
| Overall Length (Decimal Inch) | 7.8740 |
| Insert Style | SP.. 1204.. |
| Maximum Depth of Cut (mm) | 9.00 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| Number of Flutes | 3 |
| Head Length (mm) | 40.00 |
| Weldon Flat | No |
| Shank Length (mm) | 61.00 |
| Shank Length (Decimal Inch) | 2.4016 |
| Maximum RPM | 14670 |
