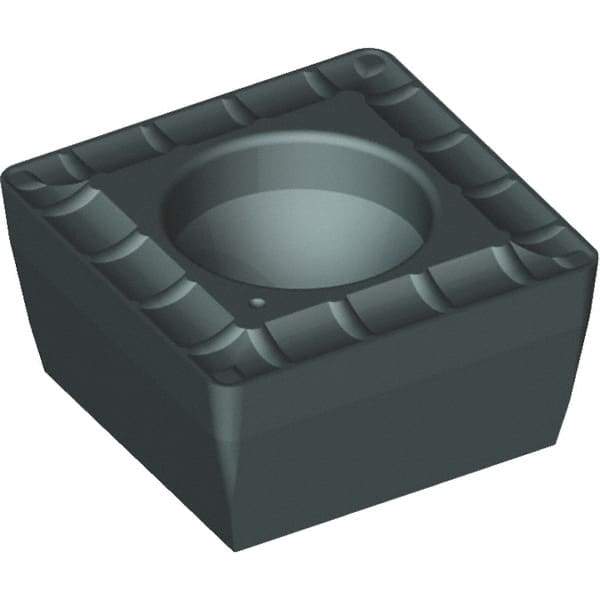

Kennametal - SPGX060304 MD Grade KC7140 Carbide Indexable Drill Insert - TiCN/TiN Finish, Square, 1/4" Inscribed Circle
Item #: 58500737
Brand: Kennametal
Model #: 4047829
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
TiCN/TiN is a multi-layered coating designed to increase tool life. It is commonly used at high cutting speeds for smoothing and finishing of the workpiece.
| Product Specifications | |
|---|---|
| Insert Style | SPGX |
| Insert Size | 060304 |
| Material | Carbide |
| Manufacturer's Grade | KC7140 |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Thickness (mm) | 3.18 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Shape | Square |
| Hole Diameter (mm) | 2.65 |
| Hole Diameter (Decimal Inch) | 0.1043 |
| Relief Angle | 11 |
| Included Angle | 90 |
| Coating | TiCN/TiN |
| Coating Process | PVD |
| Cutting Direction | Neutral |
| Chipbreaker | MD |
