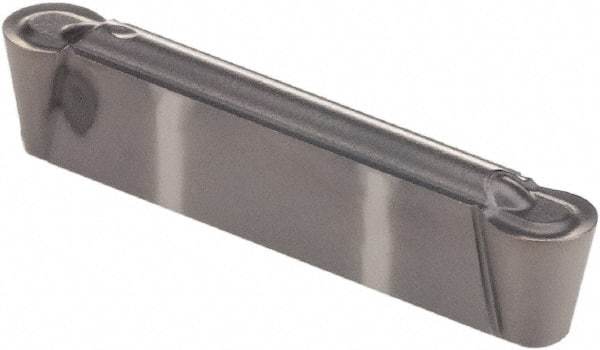

Kennametal - 0300R GMP Grade KCU10, 3mm Cutting Width Carbide Grooving Insert - 2.51mm Max Depth of Cut, Neutral, 1.5mm Corner Radius, AlTiN Finish
Item #: 58500018
Brand: Kennametal
Model #: 4034815
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | R |
| Insert Size | 0300 |
| Material | Carbide |
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Maximum Depth of Cut (mm) | 2.51 |
| Maximum Depth of Cut (Decimal Inch) | 0.0990 |
| Material Grade | C3/C4 |
| Manufacturer's Grade | KCU10 |
| Coating | AlTiN |
| Insert Hand | Neutral |
| Cutting Height (mm) | 4.01 |
| Cutting Height (Decimal Inch) | 0.1580 |
| Insert Seat Size | 3 |
| Chipbreaker | GMP |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Turning |
| Corner Radius (mm) | 1.50 |
| Corner Radius (Decimal Inch) | 0.0591 |
| Coating Process | PVD |
| Overall Length (mm) | 20.00 |
| Overall Length (Decimal Inch) | 0.7874 |
| Series | A4 |
| Manufacturers Catalog Number | A4R0300M03P00GMP |
