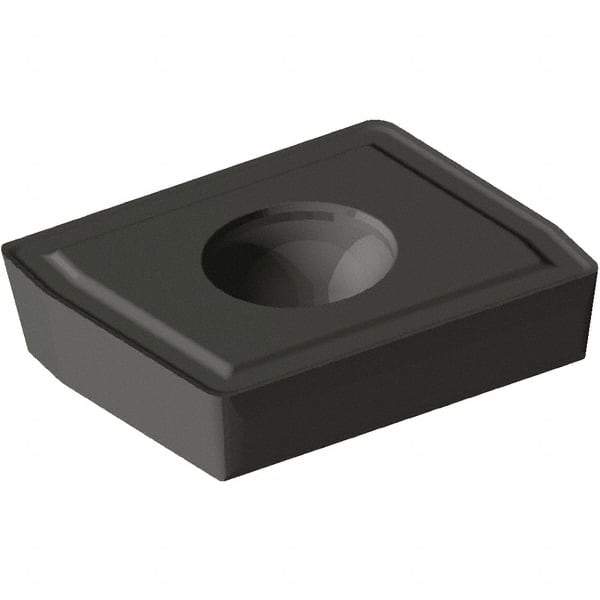

Kennametal - DFC06T312 HP Grade KCU25 Carbide Indexable Drill Insert - AlTiN Finish
Item #: 58498205
Brand: Kennametal
Model #: 5118329
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
AlTiN is one of the most abrasive-resistant and hardest of the coatings. It is commonly used for machining aircraft and aerospace material, nickel alloys, stainless steel, titanium, cast iron and carbon steel.
| Product Specifications | |
|---|---|
| Insert Style | DFC |
| Insert Size | 06T312 |
| Material | Carbide |
| Manufacturer's Grade | KCU25 |
| Thickness (mm) | 3.75 |
| Thickness (Decimal Inch) | 0.1476 |
| Corner Radius (mm) | 0.81 |
| Corner Radius (Decimal Inch) | 0.0320 |
| Width (Decimal Inch) | 0.4880 |
| Width (mm) | 12.40 |
| Length (mm) | 16.00 |
| Length (Decimal Inch) | 0.6300 |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Relief Angle | 8 |
| Included Angle | 90 |
| Coating | AlTiN |
| Coating Process | PVD |
| Cutting Direction | Neutral |
| Chipbreaker | HP |
