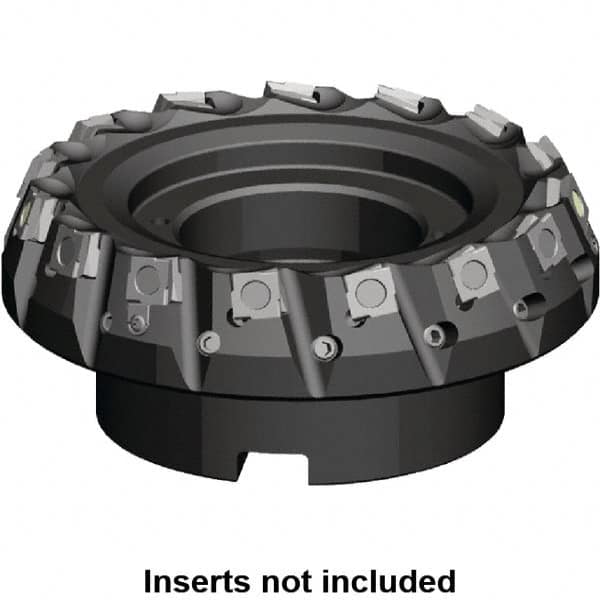

Kennametal - 125mm Cut Diam, 40mm Arbor Hole, 5.9mm Max Depth of Cut, 20° Indexable Chamfer & Angle Face Mill - 10 Inserts, SPHX 1205... Insert, Right Hand Cut, 10 Flutes, Series Fix-Perfect
Item #: 58497983
Brand: Kennametal
Model #: 1503049
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 125.00 |
| Cutting Diameter (Decimal Inch) | 4.9213 |
| Arbor Hole Diameter (mm) | 40.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.5748 |
| Lead Angle | 20 |
| Overall Height (Decimal Inch) | 2.4803 |
| Overall Height (mm) | 63.00 |
| Insert Compatibility | SPHX 1205... |
| Series | Fix-Perfect |
| Maximum Depth of Cut (mm) | 5.90 |
| Maximum Depth of Cut (Decimal Inch) | 0.2323 |
| Number of Cutter Inserts | 10 |
| Insert Holding Method | Clamp |
| Cutter Style | WFP |
| Number of Flutes | 10 |
| Hub Diameter (Decimal Inch) | 3.7008 |
| Hub Diameter (mm) | 94.00 |
| Maximum Body Diameter (Decimal Inch) | 5.4075 |
| Maximum RPM | 2500 |
| Cutting Direction | Right Hand |
| Pitch | Coarse |
| Complete Insert Compatibility | SPHX 1205ZC.R |
